The new features on the SQL statement, are explained here.
3.4.1 INSERT ON CONFLICT statement
When INSERT statement is executed under condition that if becomes a constraint violation, automatic switch to the UPDATE statement is now available (called UPSERT statement). To use this feature, specify the ON CONFLICT clause in the INSERT statement. Syntax INSERT INTO … ON CONFLICT [ { (column_name, …) | ON CONSTRAINT constraint_name }] { DO NOTHING | DO UPDATE SET column_name = value } [ WHERE … ] In the ON CONFLICT clause, specify where the constraint violation will occur.
Specify a list of column names, or a constraint name in the syntax of the “ON CONSTRAINT
constraint_name”.
In case of specifying constraints consisting of multiple columns, it is necessary to specify all
of the column names that are included in the constraint.
If you omit the par after ON CONFLICT, all of the constraint violation is checked. This
omission is available only in case of using DO NOTHING clause.
When the constraint violation occurs for other than the specified columns or constraints in the
ON CONFLICT clause, INSERT statement will result in an error. After the ON CONFLICT clause, the behavior when constraint violation has occurred is described. If you specify a DO NOTHING clause, nothing is done for constraint violations occurred (constraint violation does not occur). If you specify a DO UPDATE clause, UPDATE to the specific columns is executed. Following is the execution examples.
PDF page 32
Example 18Prepare table and data
postgres=> CREATE TABLE upsert1 (key NUMERIC, val VARCHAR(10)) ;
CREATE TABLE
postgres=> ALTER TABLE upsert1 ADD CONSTRAINT pk_upsert1 PRIMARY KEY (key) ;
ALTER TABLE
postgres=> INSERT INTO upsert1 VALUES (100, 'Val 1') ;
INSERT 0 1
postgres=> INSERT INTO upsert1 VALUES (200, 'Val 2') ;
INSERT 0 1
postgres=> INSERT INTO upsert1 VALUES (300, 'Val 3') ;
INSERT 0 1
The following is a description example of the ON CONFLICT clause. Since DO NOTHING is
specified in the handling part, nothing is done even if constraint violation occurs.
Example 19ON CONFLICT clause samples
postgres=> INSERT INTO upsert1 VALUES (200, 'Update 1')
ON CONFLICT DO NOTHING ; -- omit constraint name or column
INSERT 0 0
postgres=> INSERT INTO upsert1 VALUES (200, 'Update 1')
ON CONFLICT(key) DO NOTHING ; -- set column name
INSERT 0 0
postgres=> INSERT INTO upsert1 VALUES (200, 'Update 1')
ON CONFLICT(val) DO NOTHING ; -- error when no constraint column set
ERROR: there is no unique or exclusion constraint matching the ON CONFLICT specification
postgres=> INSERT INTO upsert1 VALUES (200, 'Update 1')
ON CONFLICT ON CONSTRAINT pk_upsert1 DO NOTHING ; -- set constraint
INSERT 0 0
In the DO UPDATE clause, you describes the update process. This is basically the same as the part
subsequent the SET clause in the UPDATE statement. If you use an alias EXCLUDED, you can
access the records that could not be stored when INSERT statement is executed.
PDF page 33
Example 20DO UPDATE clause samples
postgres=> INSERT INTO upsert1 VALUES (400, 'Upd4')
ON CONFLICT DO UPDATE SET val = EXCLUDED.val ; -- No constraint error
ERROR: ON CONFLICT DO UPDATE requires inference specification or constraint name
LINE 2: ON CONFLICT DO UPDATE SET val = EXCLUDED.val;
^
HINT: For example, ON CONFLICT ON CONFLICT (<column>).
postgres=> INSERT INTO upsert1 VALUES (300, 'Upd3')
ON CONFLICT(key) DO UPDATE SET val = EXCLUDED.val ; -- Use EXCLUDED alias
INSERT 0 1
postgres=> INSERT INTO upsert1 VALUES (300, 'Upd3')
ON CONFLICT(key) DO UPDATE SET val = EXCLUDED.val WHERE upsert1.key = 100 ;
INSERT 0 0 -- Can determin UPDATE conditions when specify the WHERE clause
Relation between ON CONFLICT Clause and Trigger
How the trigger works during the execution of INSERT ON CONFLICT statement is verified. BEFORE INSERT trigger has always been executed. If the record is updated by DO UPDATE statement, BEFORE INSERT trigger and BEFORE / AFTER UPDATE trigger worked. Only BEFORE INSERT trigger was executed if the UPDATE is not performed by the WHERE clause.
Triggers
Success
DO
DATE
DATE
INSERT
NOTHING
(UPDATED)
(NO UPDATE)
BEFORE INSERT
Execute
Execute
Execute
Execute
AFTER INSERT
Execute
-
-
-
BEFORE UPDATE
-
-
Execute
-
AFTER UPDATE
-
-
Execute
-
Table 24Executed triggers
ON CONFLICT clause and Execution Plan
By executing ON CONFLICT clause, the execution plan will change. When you run the EXPLAIN statement, Conflict Resolution, Conflict Arbiter Indexes, and Conflict Filter appear in the execution plan. Actual output is shown in the following example.
PDF page 34
Example 21ON CONFLICT Clause and Execution Plan
postgres=> EXPLAIN INSERT INTO upsert1 VALUES (200, 'Update 1')
ON CONFLICT(key) DO NOTHING ;
QUERY PLAN
-----------------------------------------------------
Insert on upsert1 (cost=0.00..0.01 rows=1 width=0)
Conflict Resolution: NOTHING
Conflict Arbiter Indexes: pk_upsert1
-> Result (cost=0.00..0.01 rows=1 width=0)
(4 rows)
postgres=> EXPLAIN INSERT INTO upsert1 VALUES (400, 'Upd4')
ON CONFLICT(key) DO UPDATE SET val = EXCLUDED.val ;
QUERY PLAN
-----------------------------------------------------
Insert on upsert1 (cost=0.00..0.01 rows=1 width=0)
Conflict Resolution: UPDATE
Conflict Arbiter Indexes: pk_upsert1
-> Result (cost=0.00..0.01 rows=1 width=0)
(4 rows)
postgres=> EXPLAIN INSERT INTO upsert1 VALUES (400, 'Upd4')
ON CONFLICT(key) DO UPDATE SET val = EXCLUDED.val WHERE upsert1.key = 100 ;
QUERY PLAN
-----------------------------------------------------
Insert on upsert1 (cost=0.00..0.01 rows=1 width=0)
Conflict Resolution: UPDATE
Conflict Arbiter Indexes: pk_upsert1
Conflict Filter: (upsert1.key = '100'::numeric)
-> Result (cost=0.00..0.01 rows=1 width=0)
(5 rows)
Current version does not support ON CONFLICT DO UPDATE statement to the remote instance
using postgres_fdw module.
PDF page 35
ON CONFLICT clause and the partition table
ON CONFLICT clause for partition table using the INSERT trigger it will be ignored.
Example 22INSERT ON CONLICT statement for the partition table#1
postgres=> CREATE TABLE main1 (key1 NUMERIC, val1 VARCHAR(10)) ;
CREATE TABLE
postgres=> CREATE TABLE main1_part100 (CHECK(key1 < 100)) INHERITS (main1) ;
CREATE TABLE
postgres=> CREATE TABLE main1_part200 (CHECK(key1 >= 100 AND key1 < 200))
INHERITS (main1) ;
CREATE TABLE
postgres=> ALTER TABLE main1_part100 ADD CONSTRAINT pk_main1_part100
PRIMARY KEY (key1);
ALTER TABLE
postgres=> ALTER TABLE main1_part200 ADD CONSTRAINT pk_main1_part200
PRIMARY KEY (key1);
ALTER TABLE
postgres=> CREATE OR REPLACE FUNCTION func_main1_insert()
RETURNS TRIGGER AS $$
BEGIN
IF (NEW.key1 < 100) THEN
INSERT INTO main1_part100 VALUES (NEW.*) ;
ELSIF (NEW.key1 >= 100 AND NEW.key1 < 200) THEN
INSERT INTO main1_part200 VALUES (NEW.*) ;
ELSE
RAISE EXCEPTION 'ERROR! key1 out of range.' ;
END IF ;
RETURN NULL ;
END ;
$$ LANGUAGE 'plpgsql';
CREATE FUNCTION
PDF page 36
Example 23INSERT ON CONLICT statement for the partition table#2
postgres=> CREATE TRIGGER trg_main1_insert BEFORE INSERT ON main1
FOR EACH ROW EXECUTE PROCEDURE func_main1_insert() ;
CREATE TRIGGER
postgres=> INSERT INTO main1 VALUES (100, 'DATA100') ;
INSERT 0 0
postgres=> INSERT INTO main1 VALUES (100, 'DATA100') ;
ERROR: duplicate key value violates unique constraint "pk_main1_part200"
DETAIL: Key (key1)=(100) already exists.
CONTEXT: SQL statement "INSERT INTO main1_part200 VALUES (NEW.*)"
PL/pgSQL function func_main1_insert() line 6 at SQL statement
postgres=> INSERT INTO main1 VALUES (100, 'DATA100')
ON CONFLICT DO NOTHING ;
ERROR: duplicate key value violates unique constraint "pk_main1_part200"
DETAIL: Key (key1)=(100) already exists.
CONTEXT: SQL statement "INSERT INTO main1_part200 VALUES (NEW.*)"
PL/pgSQL function func_main1_insert() line 6 at SQL statement
PDF page 37
3.4.2 ALTER TABLE SET UNLOGGED statement
When the update transaction occurs on the table, change log is written to WAL. In the standard setting COMMIT statement from the user will wait until the writing to WAL completes. In previous versions of PostgreSQL, if reliability is not important, we were able to create a table that does not perform the writing of the WAL, using the CREATE UNLOGGED TABLE statement. In PostgreSQL 9.5, the control of WAL writing comes to be modified to each table. Syntax - To UNLOGGED TABLE ALTER TABLE table_name SET UNLOGGED
Syntax - To ordinary (LOGGED) TABLE ALTER TABLE table_name SET LOGGED
Example 24Change to UNLOGGED TABLE
postgres=> CREATE TABLE logtbl1 (c1 NUMERIC, c2 VARCHAR(10)) ;
CREATE TABLE
postgres=> \d+ logtbl1
Table "public.logtbl1"
Column | Type | Modifiers | Storage | Stats target | Description
--------+-----------------------+-----------+----------+--------------+------------
c1 | numeric | | main | |
c2 | character varying(10) | | extended | |
postgres=> ALTER TABLE logtbl1 SET UNLOGGED ;
ALTER TABLE
postgres=> \d+ logtbl1
Unlogged table "public.logtbl1"
Column | Type | Modifiers | Storage | Stats target | Description
--------+-----------------------+-----------+----------+--------------+------------
c1 | numeric | | main | |
c2 | character varying(10) | | extended | |
Using the \d+ command, you can see that the normal table is changed to UNLOGGED table.
PDF page 38
Implementation
Internally, a new UNLOGGED TABLE (or TABLE) with the same structure is created, and the data are copied. relfilenode columns and relpersistence column of the pg_class catalog is changed.
Example 25Change of pg_class Catalog
postgres=> SELECT relname, relfilenode, relpersistence FROM pg_class WHERE
relname='logtbl1' ;
relname | relfilenode | relpersistence
---------+-------------+----------------
logtbl1 | 16483 | p
(1 row)
postgres=> ALTER TABLE logtbl1 SET UNLOGGED ;
ALTER TABLE
postgres=> SELECT relname, relfilenode, relpersistence FROM pg_class WHERE
relname='logtbl1' ;
relname | relfilenode | relpersistence
---------+-------------+----------------
logtbl1 | 16489 | u
(1 row)
Changes to INHERIT table
If you change the setting of the inheritance table, each table maintains the independent setting. Even if one of the child table is set to UNLOGGED, the other tables are not affected.
3.4.3 IMPORT FOREIGN SCHEMA statement
In order to access the external table using the FOREIGN DATA WRAPPER, create an external table using the CREATE FOREIGN TABLE statement after you create a SERVER and USER MAPPING. In previous versions, CREATE FOREIGN TABLE statement is executed for each remote reference table, and it is necessary to define the definition of the same column as the remote table again. IMPORT FOREIGN SCHEMA statement performs this in a collectively per schema. IMPORT FOREIGN SCHEMA statement can import not only the table, also views and materialized views that are stored in the schema of the remote instance.
PDF page 39
Syntax IMPORT FOREIGN SCHEMA [ { LIMIT TO | EXCEPT } (table_name, …) ] FROM SERVER server_name INTO local_schema [ OPTIONS (option ‘value’ , …) ]
Clause
Description
LIMIT TO
Used to limit the table to be imported. If omitted import all tables
EXCEPT
FROM SERVER
Specify the SERVER object that represents the remote instance witch perform the import.
INTO
Specify the schema name of the local instance which perform import.
Table 25Syntax for IMPORT FOREIGN SCHEMA statement
Example 26Execution of the IMPORT FOREIGN SCHEMA statement
postgres=# CREATE EXTENSION postgres_fdw ;
CREATE EXTENSION
postgres=# CREATE SERVER remsvr1 FOREIGN DATA WRAPPER postgres_fdw
OPTIONS (host '192.168.1.200', port '5432', dbname 'demodb') ;
CREATE SERVER
postgres=# CREATE USER MAPPING FOR public SERVER remsvr1
OPTIONS (user 'user1', password 'secret') ;
CREATE USER MAPPING
postgres=# CREATE SCHEMA schema2 ;
CREATE SCHEMA
postgres=# IMPORT FOREIGN SCHEMA schema1 FROM SERVER remsvr1 INTO schema2 ;
IMPORT FOREIGN SCHEMA
Schema to store the imported FOREIGN TABLE must be created in advance.
In the case that the table, which has the same name as the remote schema, exists in the
local schema specified to import, error occurs and FOREIGN TABLE is not created.
If the remote instance does not require a password (trust), IMPORT FOREIGN SCHEMA
statement issued by a general user will fail.
PDF page 40
Example 27Behavior that cause an error
postgres=# IMPORT FOREIGN SCHEMA public FROM SERVER remsvr1 INTO schemax ;
ERROR: schema "schemax" does not exist -- No Local Schema
postgres=# IMPORT FOREIGN SCHEMA schema1 FROM SERVER remsvr1 INTO schema1 ;
ERROR: relation "data1" already exists -- Exists same name table
CONTEXT: importing foreign table "table2"
postgres=> IMPORT FOREIGN SCHEMA public FROM SERVER remsvr1 INTO schema1 ;
ERROR: password is required
DETAIL: Non-superuser cannot connect if the server does not request a password.
HINT: Target server's authentication method must be changed.
OPTIONS clause
Following options can be specified in the IMPORT FOREIGN SCHEMA statement with OPTIONS clause.
If DEFAULT clause that uses sequence objects to the remote table has been used with the import_default option set “true”, IMPORT FOREIGN SCHEMA statement becomes to error.
PDF page 41
Example 28DEFAULT with Sequence
(remote) postgres=> CREATE SEQUENCE seq1 ;
CREATE SEQUENCE
(remote)postgres=> CREATE TABLE data1(c1 NUMERIC DEFAULT nextval('seq1')) ;
CREATE TABLE
(local) postgres=# IMPORT FOREIGN SCHEMA public FROM SERVER remsvr2 INTO schema1
OPTIONS (import_default 'true') ;
ERROR: relation "public.seq1" does not exist
CONTEXT: importing foreign table "data1"
3.4.4 SELECT SKIP LOCKED statement
When performing an access to the tuple holding the conflicting lock, SQL statement usually waits until the lock is released. NOWAIT clause can be used as a way to generate an error without waiting. In PostgreSQL 9.5, it is possible to perform search skipping a locked tuple. To use this feature, specify the SKIP LOCKED clause in the SELECT statement.
Example 29Prepare data and lock tuple
postgres=> CREATE TABLE lock1 (key NUMERIC, val TEXT) ;
CREATE TABLE
postgres=> INSERT INTO lock1 VALUES (generate_series(1, 2000), 'initial') ;
INSERT 0 2000
postgres=> BEGIN ;
BEGIN
postgres=> SELECT * FROM lock1 WHERE key = 1000 FOR SHARE ;
key | val
------+---------
1000 | initial
(1 row)
The above example create a table and locked a tuple of the "key = 1000" with the FOR SHARE
clause. In the following example, we performed a search using SKIP LOCKED clause in the other
session. Since tuple of the "key = 1000" conflicts with SELECT statement specifying the FOR
UPDATE clause, it becomes wait state under the standard condition, or it causes an error in case that
NOWAIT is specified. By specifying the SKIP LOCKED clause, tuples other than "key = 1000" has
PDF page 42
been successfully retrieved.
Example 30SELECT by the other session
postgres=> SELECT * FROM lock1 WHERE key IN (999, 1000, 1001) FOR UPDATE SKIP LOCKED ;
key | val
------+---------
999 | initial
1001 | initial
(2 rows)

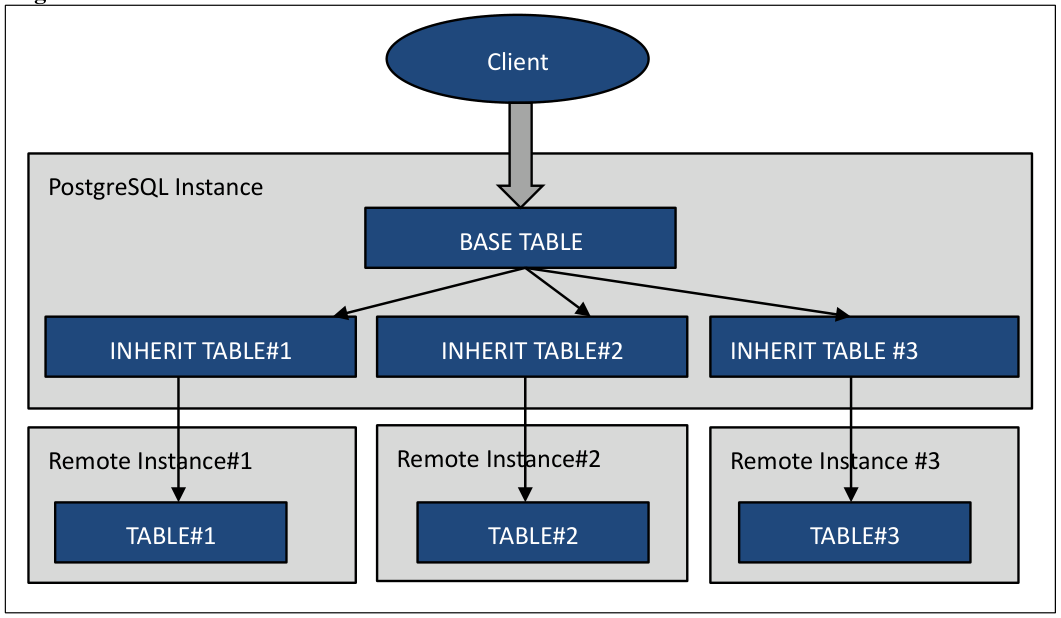

3.4.5 CREATE FOREIGN TABLE INHERITS statement
As inheritance table of an existing table, you can create an external table (FOREIGN TABLE). This feature makes it possible to distribute the processing to multiple hosts with a combination of partitioning and external table.
INHERITS clause is different from the previous version. Parent table is specified in INHERITS clause. Example of the implementation and the verification of the execution plan are shown below.
Example 31Create parent table
postgres=> CREATE TABLE parent1(key NUMERIC, val TEXT) ;
CREATE TABLE
Create a table (inherit1, inherit2, inherit3) on the remote instance.
Example 32Create child table on the remote instance
postgres=> CREATE TABLE inherit1(key NUMERIC, val TEXT) ;
CREATE TABLE
Execute the CREATE FOREIGN TABLE statement to create an external table to the table (inherit1,
inherit2, inherit3) on each remote instance.
Example 33Create External Tables
postgres=# CREATE EXTENSION postgres_fdw ;
CREATE EXTENSION
postgres=# CREATE SERVER remsvr1 FOREIGN DATA WRAPPER postgres_fdw
OPTIONS (host 'remsvr1', dbname 'demodb', port '5432') ;
CREATE SERVER
postgres=# CREATE USER MAPPING FOR public SERVER remsvr1
OPTIONS (user 'demo', password 'secret') ;
CREATE USER MAPPING
postgres=# GRANT ALL ON FOREIGN SERVER remsvr1 TO public ;
GRANT
postgres=> CREATE FOREIGN TABLE inherit1(CHECK(key < 1000))
INHERITS (parent1) SERVER remsvr1 ;
CREATE FOREIGN TABLE
The changes from the previous versions are: CREATE FOREIGN TABLE statement specified
CHECK constraint rather than column definition, and INHERITS clause specified the original table.
The above is an example of only one instance, but in fact, you should execute CREATE SERVER
statement, CREATE USER MAPPING statement, and CREATE FOREIGN TABLE statement for
multiple instances.
PDF page 44
Example 34Check FOREIGN TABLE Definition with INHERITS Clause
postgres=> \d+ inherit2
Foreign table "public.inherit2"
Column | Type | Modifiers | FDW Options | Storage | Stats target | Description
--------+---------+-----------+-------------+----------+--------------+------------
key | numeric | | | main | |
val | text | | | extended | |
Check constraints:
"inherit2_key_check" CHECK (key >= 1000::numeric AND key < 2000::numeric)
Server: remsvr2
Inherits: parent1
When you check the execution plan, you can see that SQL access only to a specific instance due to
CHECK constraints.
Example 35Check the Execution Plan
postgres=> EXPLAIN SELECT * FROM parent1 WHERE key = 1500 ;
QUERY PLAN
-----------------------------------------------------------------------
Append (cost=0.00..121.72 rows=6 width=64)
-> Seq Scan on parent1 (cost=0.00..0.00 rows=1 width=64)
Filter: (key = '1500'::numeric)
-> Foreign Scan on inherit2 (cost=100.00..121.72 rows=5 width=64)
(4 rows)
3.4.6 ALTER USER CURRENT_USER statement
Now it is possible to specify the CURRENT_USER and CURRENT_ROLE for the user name in the ALTER USER / ALTER ROLE statement. You can execute ALTER USER statement for several purpose such as password changes of the connecting user.
Example 36CURRENT_USER Clause
postgres=> ALTER USER CURRENT_USER PASSWORD 'secret' ;
ALTER ROLE
PDF page 45
3.4.7 UPDATE SET statement enhancement
In UPDATE statement which uses the result of SELECT, the FROM clause are no longer required.
Example 37Preparation of tables
postgres=> CREATE TABLE upd1(c1 NUMERIC, c2 NUMERIC, c3 VARCHAR(10)) ;
CREATE TABLE
postgres=> CREATE TABLE upd2(c1 NUMERIC, c2 NUMERIC, c3 VARCHAR(10)) ;
CREATE TABLE
This will update the value of c2, c3 column of the table upd2 with c2, c3 column of the table upd1.
At that time, the tuple which has the same value in c1 column is used.
Example 38Syntax up to PostgreSQL 9.4
postgres=> UPDATE upd2 SET c2 = upd1.c2, c3 = upd1.c3
FROM (SELECT * FROM upd1) AS upd1
WHERE upd1.c1 = upd2.c1 ;
UPDATE 2
Example 39Syntax for PostgreSQL 9.5
postgres=> UPDATE upd2 SET (c2, c3) =
(SELECT c2, c3 FROM upd1 WHERE upd1.c1 = upd2.c1) ;
UPDATE 2
3.4.8 SELECT TABLESAMPLE statement
TABLESAMPLE clause, sampling a certain percentage of the record from the table, is now available. Syntax SELECT … FROM table_name … TABLESAMPLE {SYSTEM | BERNOULLI} (percent) [ REPEATABLE (seed) ] You can choose SYSTEM or BERNOULLI as sampling method. SYSTEM uses the tuple entire block sampled. BERNOULLI choose a more constant rate of tuples from sampled block. In ‘percent’ you specify the sampling percentage (1-100). When you specify the value other than 1 - 100 SELECT statement results in an error. REPEATABLE clause is optional the seed of sampling can be specified.
PDF page 46
Execution Plan
Execution plan of TABLESAMPLE is the followings. The cost increases when BERNOULLI is specified.
Example 40Execution Plan for TABLESAMPLE SYSTEM
postgres=> EXPLAIN ANALYZE SELECT COUNT(*) FROM data1 TABLESAMPLE SYSTEM (10) ;
QUERY PLAN
-------------------------------------------------------------------------------
Aggregate (cost=341.00..341.01 rows=1 width=0) (actual time=4.914..4.915 rows=1 loops=1)
->
Sample Scan (system) on data1
(cost=0.00..316.00 rows=10000 width=0)
(actualtime=0.019..3.205 rows=10090 loops=1)
Planning time: 0.106 ms
Execution time: 4.977 ms
(4 rows)
Example 41Execution Plan for TABLESAMPLE BERNOULLI
postgres=> EXPLAIN ANALYZE SELECT COUNT(*) FROM data1 TABLESAMPLE
BERNOULLI (10) ;
QUERY PLAN
-------------------------------------------------------------------------------
Aggregate (cost=666.00..666.01 rows=1 width=0) (actual time=13.654..13.655 rows=1 loops=1)
-> Sample Scan (bernoulli) on data1 (cost=0.00..641.00 rows=10000 width=0) (actual
time=0.013..12.121 rows=10003 loops=1)
Planning time: 0.195 ms
Execution time: 13.730 ms
(4 rows)
3.4.9 REINDEX SCHEMA statement
It is now possible to specify the SCHEMA clause to REINDEX statement. All indexes in the schema will be re-created. If there is an index of other users own in the schema, the indexes to which the execution user of REINDEX can access are reconstructed.
PDF page 47
Example 42REINDEX SCHEMA statement
postgres=> REINDEX SCHEMA schema1 ;
REINDEX
postgres=> REINDEX SCHEMA schema2 ;
ERROR: must be owner of schema schema2
postgres=> BEGIN ;
BEGIN
postgres=> REINDEX SCHEMA schema1 ;
ERROR: REINDEX SCHEMA cannot run inside a transaction block
postgres=>
To execute REINDEX SCHEMA statement, the following conditions are required.
Being the owner of the schema.
Run within a transaction is impossible.
3.4.10 REINDEX (VERBOSE) statement
To REINDEX statement, VERBOSE clause can now be specified to output a detailed message. Similarly. The -v option has been added to reindexdb command. Syntax REINDEX (VERBOSE) {TABLE | DATABASE | SCHEMA} …
Example 43REINDEX (VERBOSE)
postgres=> REINDEX (VERBOSE) TABLE data1 ;
INFO: index "idx1_data1" was reindexed
DETAIL: CPU 0.00s/0.00u sec elapsed 0.02 sec.
INFO: index "pg_toast_16424_index" was reindexed
DETAIL: CPU 0.00s/0.00u sec elapsed 0.00 sec.
REINDEX
PDF page 48
3.4.11 ROLLUP, CUBE, GROUPING SETS statement
In SELECT statement, ROLLEUP, CUBE and GROUPING SETS clause is now available to calculate the subtotal value. These specifications are used with GROUP BY clause. Please refer to the manual for the detailed syntax.
Example 44ROLLUP (Output the subtotal values for each column c1)
postgres=> SELECT c1, SUM(c2) FROM role1 GROUP BY ROLLUP (c1) ;
c1 | sum
------+-------
val1 | 5050
val3 | 5050
val4 | 5050
| 15150
(4 rows)
3.4.12 CREATE FOREIGN TABLE (CHECK)
In CREATE FOREIGN TABLE statement, now can be describe the CHECK constraints. However constraints specified in the CREATE FOREIGN TABLE statement is not valid for INSERT or UPDATE statement. CHECK constraint becomes effect only in the SELECT statement of the session that set the parameters constraint_exclusion to on.
PDF page 49
Example 45CHECK constraint in the CREATE FOREIGN TABLE statement
postgres=> CREATE FOREIGN TABLE data1 (c1 NUMERIC, c2 VARCHAR(10),
CHECK(c1 > 0)) SERVER remsvr1 ;
CREATE FOREIGN TABLE
postgres=> INSERT INTO data1 VALUES (-2, 'add') ;
INSERT 0 1
postgres=> SELECT * FROM data1 WHERE c1 = -2 ;
c1 | c2
----+-----
-2 | add
(1 row)
postgres=> SET constraint_exclusion = on ;
SET
postgres=> SELECT * FROM data1 WHERE c1 = -20 ;
c1 | c2
----+----
(0 rows)
When you set the parameter constraint_execution to "on", the execution plan will change. Not
published a SQL statement to a remote instance in the case of conditions that do not match CHECK
constraint in the WHERE clause is written.
PDF page 50
Example 46Execution plan and CHECK constraint
postgres=> SHOW constraint_exclusion ;
constraint_exclusion
----------------------
partition
(1 row)
postgres=> EXPLAIN ANALYZE SELECT COUNT(*) FROM data1 WHERE c1 < 0 ;
QUERY PLAN
------------------------------------------------------------------------------------------
Aggregate (cost=178.27..178.28 rows=1 width=0) (actual time=1.411..1.411 rows=1 loops=1)
-> Foreign Scan on data1 (cost=100.00..175.42 rows=1138 width=0) (actual
time=1.400..1.401 rows=6 loops=1)
Planning time: 0.267 ms
Execution time: 2.585 ms
(4 rows)
postgres=> SET constraint_exclusion = on ;
SET
postgres=> EXPLAIN ANALYZE SELECT COUNT(*) FROM data1 WHERE c1 < 0 ;
QUERY PLAN
------------------------------------------------------------------------------------------
Aggregate (cost=0.01..0.02 rows=1 width=0) (actual time=0.005..0.006 rows=1 loops=1)
-> Result (cost=0.00..0.01 rows=1 width=0) (actual time=0.001..0.001 rows=0 loops=1)
One-Time Filter: false
Planning time: 0.351 ms
Execution time: 0.038 ms
(5 rows)
3.4.13 Enhance CREATE EVENT TRIGGER statement
Table_rewrite event can now be specified in the ON clause of the CREATE EVENT TRIGGER statement. Table_rewrite trigger is executed on the ALTER TABLE statement or the ALTER TYPE statement.
PDF page 51
Example 47Enhance CREATE EVENT TRIGGER statement
postgres=# CREATE FUNCTION rewrite1() RETURNS event_trigger AS $$
BEGIN
RAISE NOTICE 'Rewriting Table % for reason %',
pg_event_trigger_table_rewrite_oid()::regclass,
pg_event_trigger_table_rewrite_reason() ;
END;
$$ LANGUAGE plpgsql ;
CREATE FUNCTION
postgres=# CREATE EVENT TRIGGER rewrite_trg1 ON table_rewrite
EXECUTE PROCEDURE rewrite1() ;
CREATE EVENT TRIGGER
postgres=> ALTER TABLE data1 ALTER COLUMN c1 TYPE VARCHAR(10) ;
NOTICE: Rewriting Table data1 for reason 4
ALTER TABLE
In the trigger function, it is possible to use the following functions, which get the information of the
trigger’s associated table.
Pg_event_trigger_table_rewrite_reason function returns the OR of the following values. These values are listed in the source code (src/include/commands/event_trigger.h).
2
Change DEFAULT
ADD COLUMN DEFAULT, etc
Table 28Return value of pg_event_trigger_table_rewrite_reason function
Value Event Executed SQL statement
PDF page 52
3.4.14 PL/pgSQL ASSERT statement
ASSERT statement has been added to the PL/pgSQL. ASSERT statement can check the assumed value in the stored procedure. This statement can be ignored using parameters. Syntax ASSERT condition [, ‘message’ ]
Into the ‘condition’ write a conditional statement to check the value. If the condition becomes FALSE or NULL, ASSERT_EXCEPTION exception is raised. The ‘message’ is optional. You can specify a string which is displayed when an exception occurs. If omitted, “assertion failed” is output.
Example 48ASSERT statement
postgres=> CREATE OR REPLACE FUNCTION assert1(NUMERIC)
RETURNS NUMERIC
AS $$
BEGIN
ASSERT $1 < 20 ;
ASSERT $1 > 10, 'Assert Message' ;
RETURN $1 * 2 ;
END;
$$ LANGUAGE plpgsql ;
CREATE FUNCTION
postgres=> SELECT assert1(30) ;
ERROR: assertion failed
CONTEXT: PL/pgSQL function assert2(numeric) line 3 at ASSERT
postgres=> SELECT assert1(5) ;
ERROR: Assert Message
CONTEXT: PL/pgSQL function assert2(numeric) line 4 at ASSERT
Parameter
Parameter for controlling the operation of the ASSERT statement is plpgsql.check_asserts. The default value is “on”, and ASSERT statement will work. If this parameter is set to “off” (false), ASSERT statement will no longer work.
PDF page 53
Example 49Parameter plpgsql.check_asserts
postgres=> SELECT assert1(5) ;
ERROR: Assert Message
CONTEXT: PL/pgSQL function assert1(numeric) line 3 at ASSERT
postgres=> SET plpgsql.check_asserts = false ;
SET
postgres=> SELECT assert1(5) ;
assert1
---------
10
(1 row)
3.4.15 Additional operators and functions for jsonb type
Operators and functions for jsonb type have been added.
“||” operator
Using the “||” operator, you can perform addition and update of the json elements. Value will be replaced if you add the same key. This operator with the same behavior can be realized also jsonb_concat function.
Using the “-” operator and “#-” operator, you can delete the json element. If the key does not exist, there is no change in the original data. It is also possible to delete the element by specifying number from the array. Element numbers start from 0. These operator with the same behavior can be realized also jsonb_delete function.
Jsonb_set function replace or add of elements. new_value parameter value added if create_missing parameter is true and the item designated by path does not exist. Syntax jsonb jsonb_set(target jsonb, path text[], new_value jsonb [, create_missing boolean DEFAULT true])
Following function have been enhanced in PostgreSQL 9.5.
width_bucket Function
To width_bucket function, the version with anyelement type and anyarray type parameter has been added.
generate_series Function
Parameters of generate_series function were bigint type, integer type, or timestamp type; now numeric type is also supported. Thus it is now possible to include a decimal point in the increment of value.
